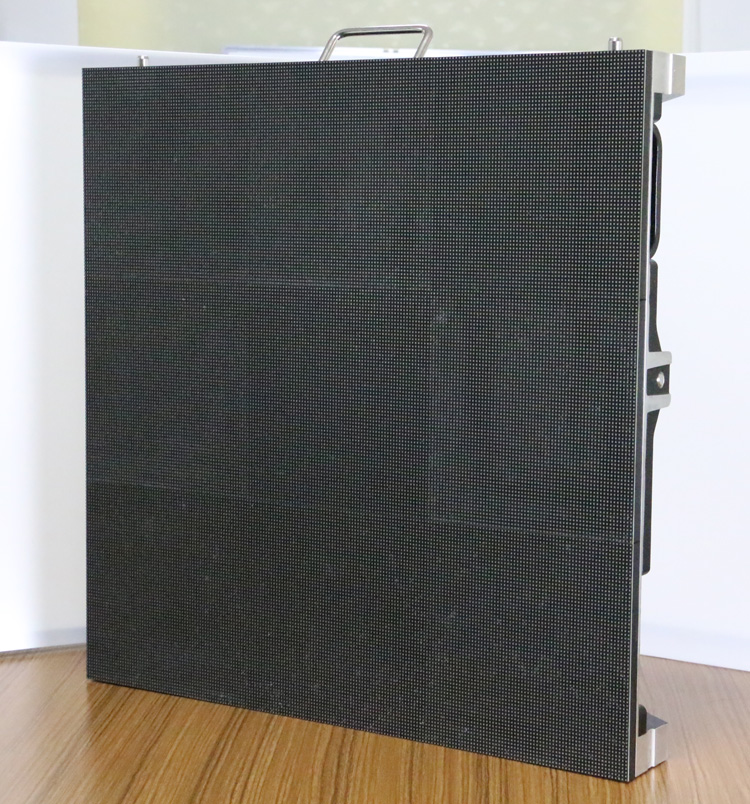

HD P3 Indoor Full Color Display Die- casting Aluminum Indoor Rental Led Display Screen P3,P4,P5 SMD Led Video Screen
Full Color Tube Led Display Features:
1. First-class LED chip: Epistar from Taiwan.
2. With pure golden wire connection in LED.
3. Grand A row material for module frame and mask.
4. 4 layers PCB and copper plating thickness > 18mil.
5. Ag alloy solder paster to ensure good soldering on PCB.
6. Stainless steel screws when assembly.
7. Easy Installation & User-friendly software.
8. Two years warranty.
| Technical parameters | UNIT | parameters Values |

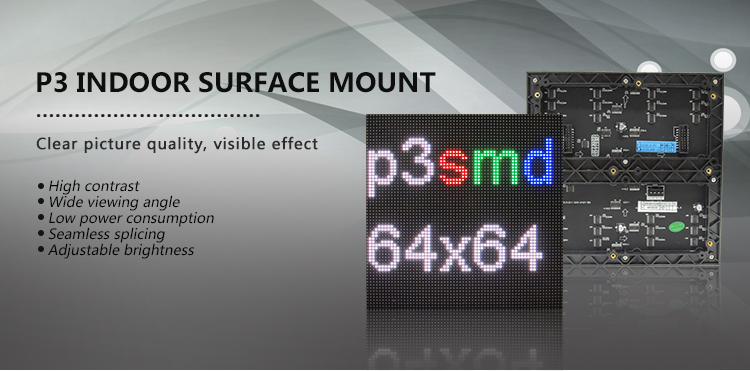

| Pixel pitch | mm | 3 |
| Panel size | mm | L192*H192*T14 |
| Physical density | /m2 | 111111 |
| Pixel configuration | R/G/B | 1,1,1 |
| Driving method | | Constant current 1/32scan |
| LED Encapsulation | SMD | Black SMD2121 |
| Display resolution | DOTS | 64X64=4096 |
| LED Parameter | MCD NM | R:82-102 G:245-305 B:45-56 R:621-625 G:524-528 B:468-472 |
| Module working voltage | VDc | 5 |
| | | |
| Viewing angle | Deg. | 120 |
| Driving device | | ICN2027/SM16016SC |
| Frame Frequency | Hz | ≥60 |
| Refresh frequency | Hz | ≥600 |
| Equilibrium brightness | cd/ m2 | 750-1000 |
| Working environment temperature | 0C | -10~60 |
| Working environment humidity | RH | 10%～70% |
| Colour temperature | | ≥10000K |
| Gray scale/color | | ≥16.7M color |
| Mean free error time | Hours | ＞5000 |
| Life | Hours | 100000 |
| Lamp failure frequency | | ＜0.0001 |
Full Color Tube Led Display Applications:

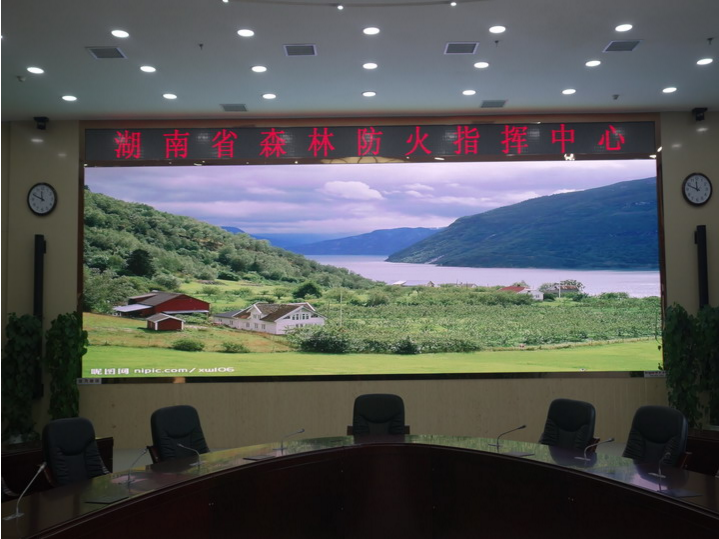

High resolution, can be used for high-end big screen TV, suitable fro interio home theatre system, compared with conventional TV, it has a larger screen, more bright beautiful color and more shocking display effect. I can be acted as a high-end indoor screens at the same time, used in the various types of indoor places, such as high-end conference rooms, families, halls, cinemas, theatres, lounge, stations and so on.
After sale service:
1) Guidance service: We can guide on line if customers have questions about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer’s country for on-site guidance.
2) Warranty period: 2 years after shipment.
3) Maintenance principles: response in time, solve problems as soon as possible and ensure the use.
4) Maintenance terms: In the Maintenance period, free of all maintenance charges. Under normal use and storage, our company will be responsible for the equipments. If there is any failure in product quality, our company will maintain and change the components for free.After Maintenance period, only charge the material costs free of manual work fees.
Basic promise from Jinhe:
A: Full automatic production to control our high quality, best color consistency and get better performance.
B: Energy saving, low power consumption and long lifespan 100,000 hours (about 10 years).
C: We guarantee that the equipment we provide are brand new, complete and unused.
D: Good heat dissipation capability and high waterproof because of the unique design of vent fan (like shutter).
E: Our quality control throughout every process from materials-production- test-package-delivery
